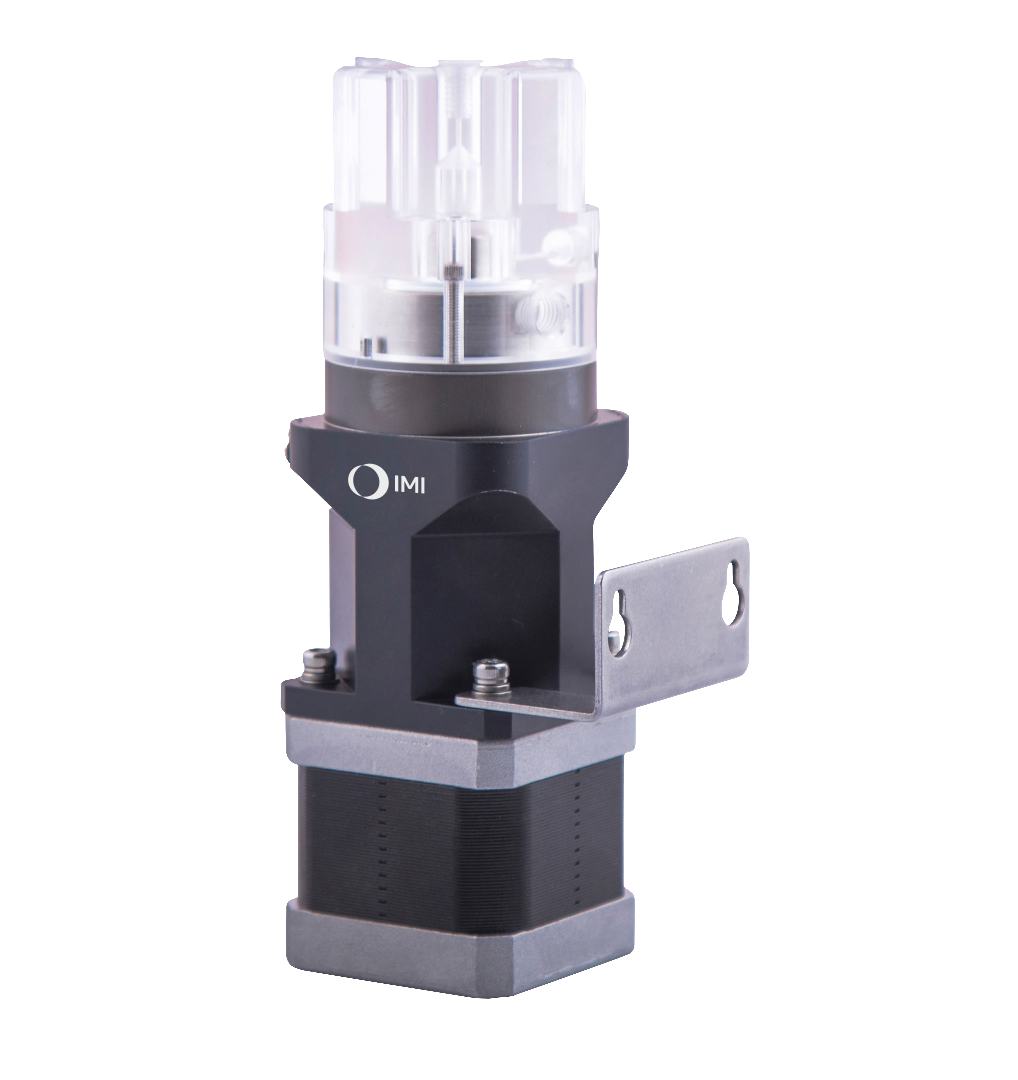

Introducing the IP4000 Inline Pump

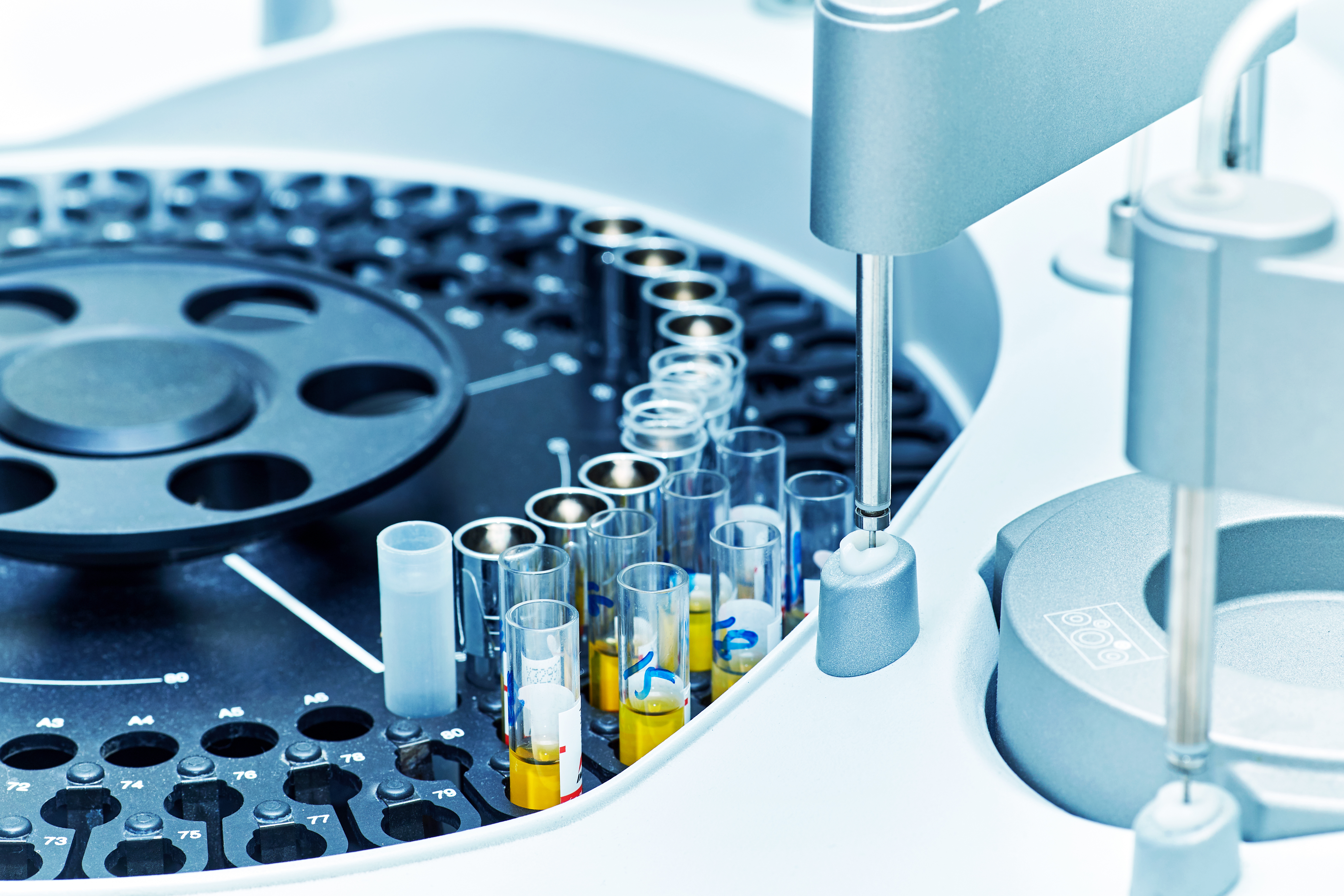

Engineered for use in analytical and diagnostic instruments, the IP4000 positive displacement pump is ideal for applications such as mass spectrometry, gene sequencing, clinical chemistry, hematology, and other IVD instruments.

Reliable and reproducible test results with increased instrument up-time

The high precision and accuracy of the IP4000 ensures that your tests yield reliable and reproducible results, increase your instrument up-time and enhance the overall quality of your analytical processes.

Reliable and reproduceable test results with outstanding accuracy and precision

  • Outstanding precision and accuracy with less than 1% CV at 2% dispense andless than 0.5% at full dispense.
  • An optional anti-backlash feature further enhances the accuracy of the pump, making it suitable for the most demanding applications.

Increased instrument up-time

  • With a lifespan exceeding 5 million cycles, the IP4000 reduces the need for frequent replacements.
  • Our solution offers a seal wash option that enhances the seal life by flushing the seal with a wash solvent.

Our Solution

IP4000 offers a wide range of selections and customized solutions suitable for many different analytical and diagnostic application requirements.

Wide dispense volume range

  • From 50 µL to 5000 µL, with additional volume options available upon request, IP4000 is suitable for various applications and instruments.

High chemical compatibility

  • The pump is compatible with a wide range of chemicals, thanks to its robust construction using materials such as SS316L, PEEK, and ceramic for the plunger, and EPDM and FKM for the seals.

More customization available on request

  • Whether customising the product itself or integrating it with other IMI Life Science products, we are here to help and solve customer problems.

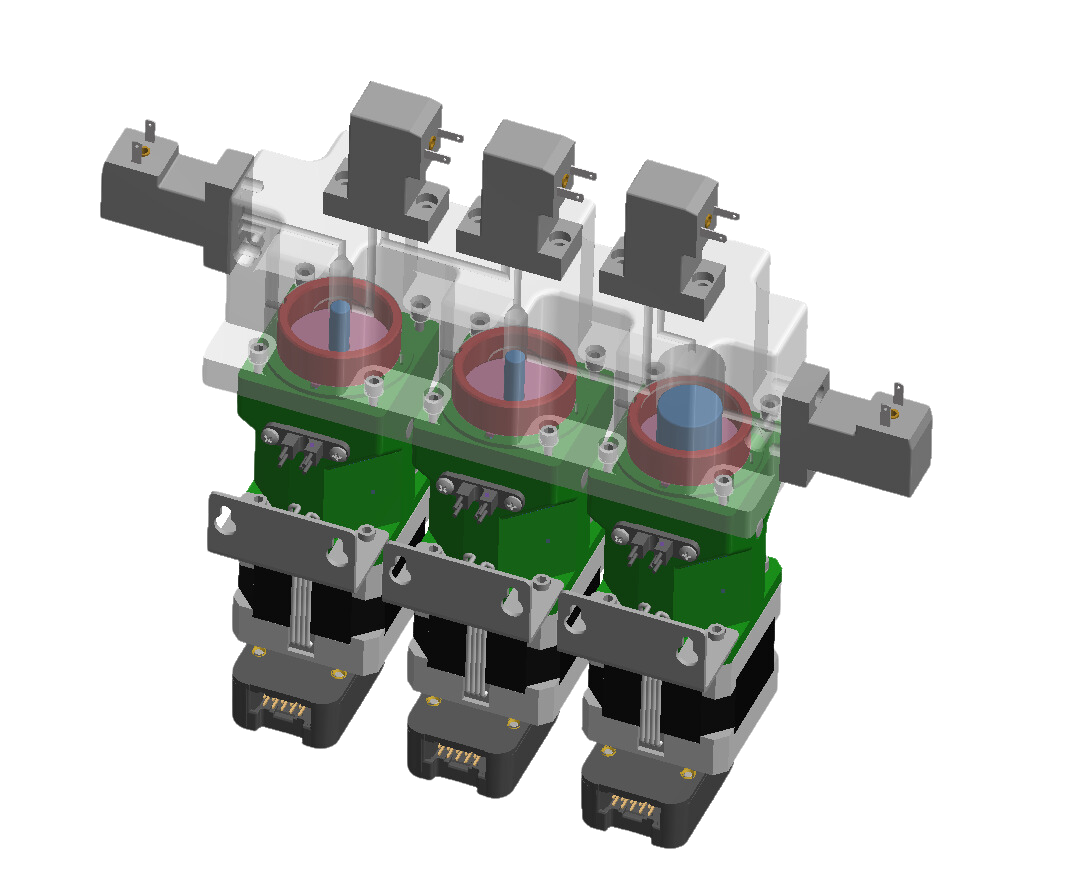

EPC

Start reducing complexity. Download our brochure.

Discover how you can reduce complexity with our IP4000 solution.

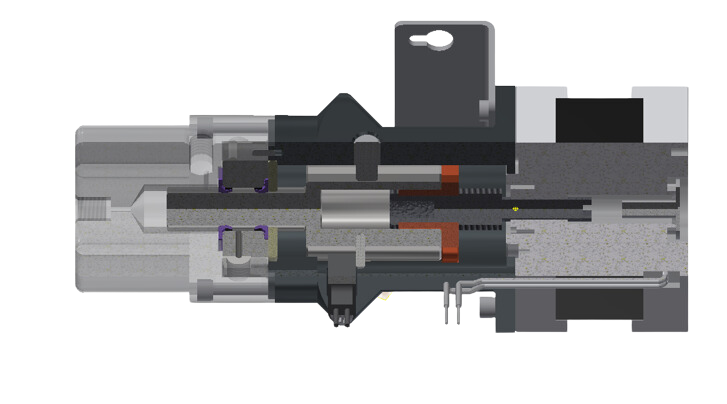

Manifold

“With the IP4000 Inline Pump, we have achieved a new benchmark in precision and reliability. Its exceptional accuracy, long lifecycle, and compact design make it the ideal choice for any analytical and diagnostic application, ensuring our customers can operate with unparalleled efficiency and confidence.”

Lin Fu
Life Science Product Manager

Meet our experts

We’ll review your current setup and requirements. We’ll then identify improvement areas and determine if it’s a good fit for both of us.

  • Lin Fu

    Product Manager

    Life Science

    With a strong knowledge of Product Management and Project Management, Lin has a proven track record of delivering high-quality outcomes under tight time pressure whilst meeting customer requirements.

Get started and book your call with our experts now.

On the call, we'll review your current setup and requirements. We'll then identify improvement areas and determine if it's a good fit for you.
